Spesification:

THE OILDYNAMIC CUTTING PRESSES – THE 588 SERIES – ARE THE MOST PERFORMING CUTTING PRESSES AVAILABLE IN THE MARKET. THEIR MOST IMPORTANT FEATURES ARE: HIGH TROLLEY DISPLACEMENT SPEED, LOW ENERGY CONSUMPTION, GREAT RELIABILITY AND CUTTING QUALITY, FEATURES THAT ALWAYS MARKED ATOM PRODUCTS. THE WIDE RANGE OF MODELS AND CONFIGURATIONS MAKE THEM ABLE TO SATISFY ANY PRODUCTION NEED IN A WIDE RANGE OF INDUSTRIAL APPLICATIONS.

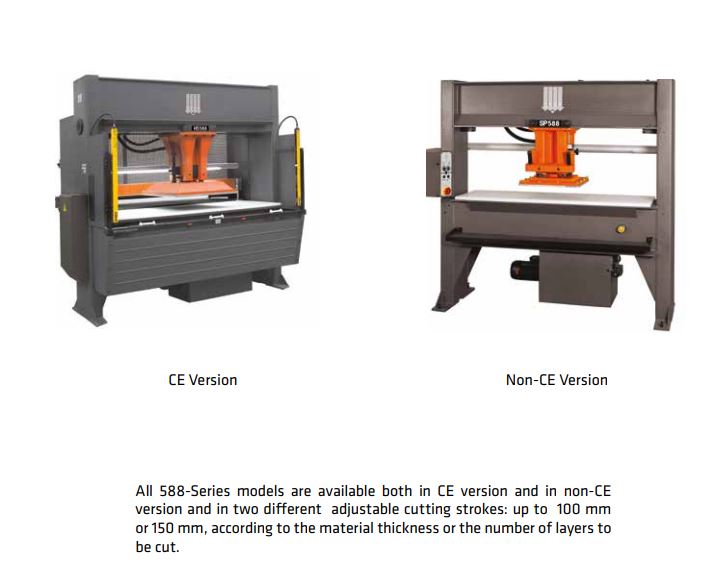

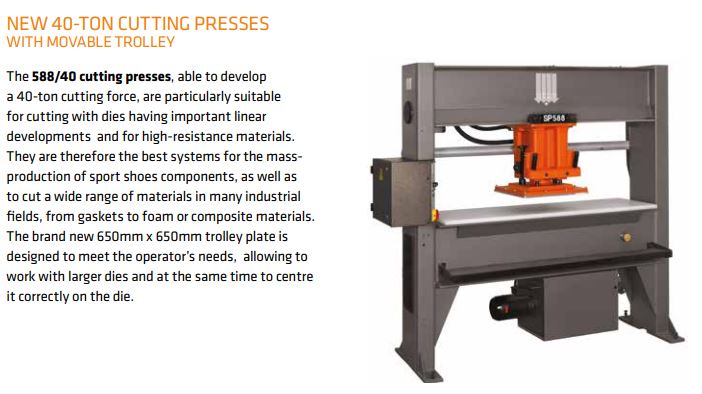

All 588-Series models are available both in CE version and in non-CE version and in two different adjustable cutting strokes: up to 100 mm or 150 mm, according to the material thickness or the number of layers to be cut. NEW 40-TON CUTTING PRESSES WITH MOVABLE TROLLEY The 588/40 cutting presses, able to develop a 40-ton cutting force, are particularly suitable for cutting with dies having important linear developments and for high-resistance materials. They are therefore the best systems for the mass- production of sport shoes components, as well as to cut a wide range of materials in many industrial fields, from gaskets to foam or composite materials. The brand new 650mm x 650mm trolley plate is designed to meet the operator’s needs, allowing to work with larger dies and at the same time to centre it correctly on the die.





MODEL CE VERSION	WORKING AREA (MM)	TROLLEY SIZE (MM)	MAXIMUM CUTTING POWER (T-KN)	SIZE (H-W-L) (MM)	NET WEIGHT WITH OIL (KG)
SP 588/3	1600 x 500	500 x 500	25t – 245 kN	1940x1400x2200	1430
HS 588/3	1600 x 500	500 x 500	25t – 245 kN	1940x1400x2300	1500
HS 588/10	2000 x 750	750 x 750	30t – 294 kN	2360x1660x2500	2270
HS 588/11	2000 x 750	500 x 750	30t – 294 kN	2360x1660x2500	2250
HS 588/14	2000 x 500	500 x 500	30t – 294 kN	2380x1410x2500	1940
S 588/40	1600 x 650	650 x 650	40t – 392 kN	2100x1400x2200	1975
HS 588/40	1600 x 650	650 x 650	40t – 392 kN	2100x1400x2300	1985



MODEL NON-CE VERSION	WORKING AREA (MM)	TROLLEY SIZE (MM)	MAXIMUM CUTTING POWER (T-KN)	SIZE (H-W-L) (MM)	NET WEIGHT WITH OIL (KG)
SP 588/3	1600 x 500	500 x 500	25t – 245 kN	1940x1360x2200	1430
HSP 588/3	1600 x 500	500 x 500	25t – 245 kN	1940x1360x2300	1500
HSP 588/10	2000 x 750	750 x 750	30t – 294 kN	2360x1600x2500	2270
HSP 588/11	2000 x 750	500 x 750	30t – 294 kN	2360x1600x2500	2250
HSP 588/14	2000 x 500	500 x 500	30t – 294 kN	2380x1350x2500	1940
SP 588/40	1600 x 650	650 x 650	40t – 392 kN	2100x1340x2200	1975
HSP 588/40	1600 x 650	650 x 650	40t – 392 kN	2100x1340x2300	1985
